More on Plotting Functions and Sub-VI’s

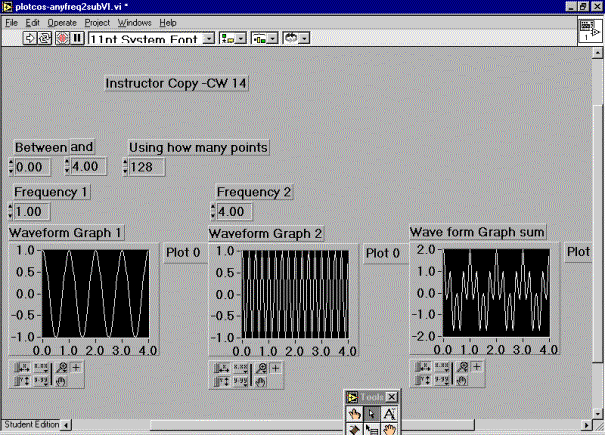

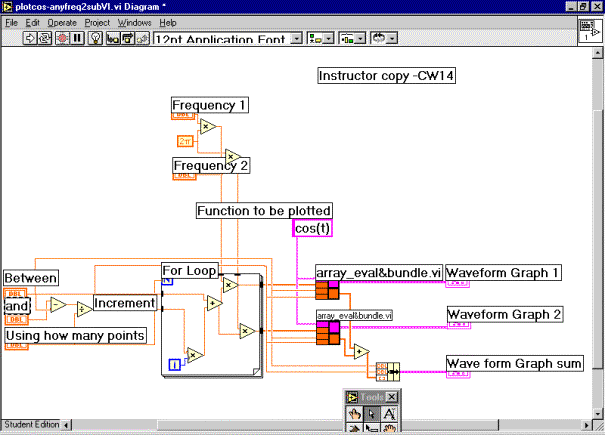

Here is the Panel and Diagram for CW 14

And the Sub-VI diagram is: (note that if you have two or more similar groups of icons, you create a Sub-VI to replace these groups, i.e. a same Sub-VI should be used for similar groups, you do not create different Sub-VI’s for similar groups, that is just grouping). Once a Sub-VI is created from a group of icons, other similar groups should be erased and replaced by this Sub-VI, rewiring is needed.
