LABVIEW BASICS I
(please read ‘LabVIEW for Everyone’, Chapters 3-5)

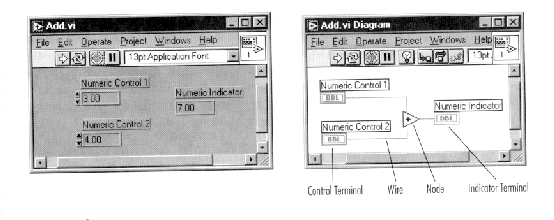

Front Panel
|
Block Diagrams
|
|
|
|
Control Palette
|
Function Palette
|
|
Control |
Control terminal-Entry (thick borders) |
|
Indicator |
Indicator terminal-Exit (thin borders) |
|
|
Node |
|
Tools Palette: E: Operating; Positioning;
Labeling; Wiring; Color; Pop-up; Scroll; D: Breakpoint; Probe
|
|
|
|
E: Wire (color code: Floating-point; Integer; Boolean; String) |
|
E: Positioning tool: select one/group; move;resize; delete |
E: Positioning tool: select one/group; move; resize; delete |
|
E: Operating tool: set inputs |
|
The Toolbar
|
|
Run/ Broken Run (D) ; Continuous Run; Abort; Pause;
|
Run/Broken
Run (D); Continuous
Run; Abort; Pause;
|
|
|
D: Steps In/Over/Out
|
|
|
D: Execution Highlighting
|
E: Alignment;
Distribution
|
E: Alignment;
Distribution
|
Pop-Up Menus (right mouse click)
|
|
D: Find Terminal
|
D: Find Control/Indicator
(C/I)
|
E: Show
|
E: Show/Hide
|
E: Data Operation
|
E: Data Operation
|
|
|
Online
Help
|
E: Representation
|
E: Representation
|
E: Data Range
|
|
E: Format &
Precision
|
|
(Pictures are from Wells) E: an editing tool D: a debugging tool
ACTIONS
|
Debugging tools |
Broken Run Button: click for error list |
|
Warnings |
|
|
Most Common Mistakes: unwired, bad wire, broken SubVI |
|
|
Single-stepping: Pause; Step In/Over/Out |
|
|
Execution Highlighting |
|
|
Probe Tool |
|
|
Breakpoint Tool |
|
|
|
|
|
Creating a subVI
|
Designing the Icon: the Icon Editor (double-clicking on Icon) |
|
Assigning the Connector: pop up Show Connector, click a terminal, click assigned control indicator |
|
|
|
|
Documenting objects, VI’s, subVI’s |
Data Operation (pop-up menu), Description Show VI Info (Windows pull-down menu) |
Save your files |
Make a copy before you exit LabVIEW 4.0 demo version |
