Engineering 103 –UMass Boston

CW 5

(In-Class-Work 5)

Introduction to LabVIEW.

a) Create this VI with one resistor and one battery:

b) Create this VI for two resistors in series:

c) Create this VI for two resistors in parallel:

By alphabetical order of the last names, the first two students in each team will submit LabVIEW LLB file cw5_XX_a.llb, the next two students will submit LabVIEW LLB file cw5_XX_b.llb, to the files folder in the server. Each LLB file should contain three VI’s corresponding to parts a, b, c of this CW. Please insert names and dates within the Front Panels. These files need to be uploaded to the server today to receive credit.

Save each VI into a LLB file (LabVIEW library) as follows:

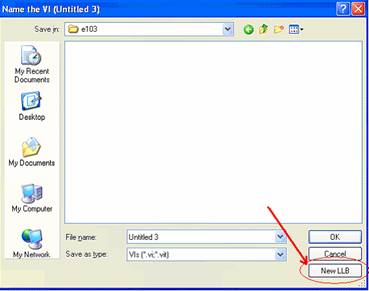

Creating library file cw5_XX_a.llb and saving part a) in there.	Saving part b) or c) into cw5_XX_a.llb

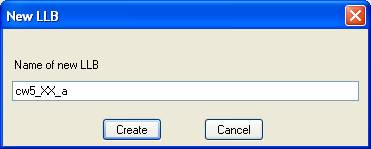

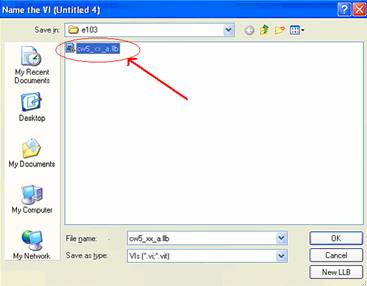

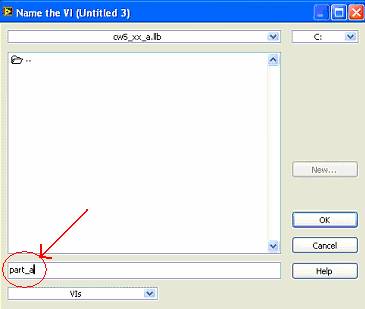

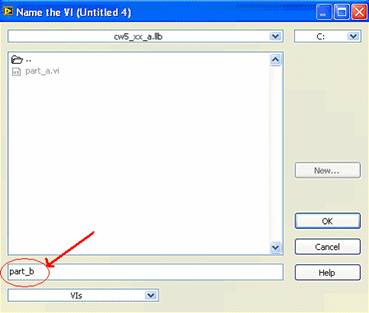

After select Save, click on New LLB Type in “cw5_XX_a”, where XX is the two digit team number, and “a” or “b” based on your subgroup within the team. Then click Create. Type in the file name for the VI: in this case “part_a”. Then click OK	After select Save, double click on the library you created cw5_XX_a.llb Type in the file name for the VI: in this case “part_b”. Then click OK

*Remember that this is an individual work (turn it in, as instructed, with your name and date). Home-works and class-works count 20% toward the course grade. Class-works are done in class.
