Meeting 24:

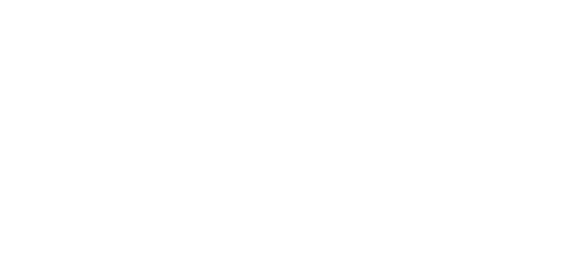

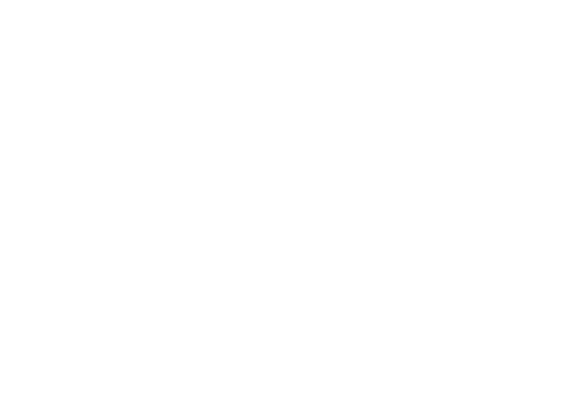

More on plotting a function using a For Loop:

Link with tutorials on LabVIEW: www.iit.edu/~labview/Dummies.html (suggested by C. Jones)

Help with HW3:

Logbook

Just to remind that the logbook is a very important component of the course and will be evaluated, together with the final exam they count 20% of the course grade.

You should record the logbook on a daily basis, with pages numbered and dated, about two main topics:

-Discussions and findings about projects, collectively or individually

-Answers to questions posted here in the class notes and other learning conclusions you found by doing activities related to this course.

The next logbook due date is Engin 103 Final Exam in May 2006.

Logbook questions:

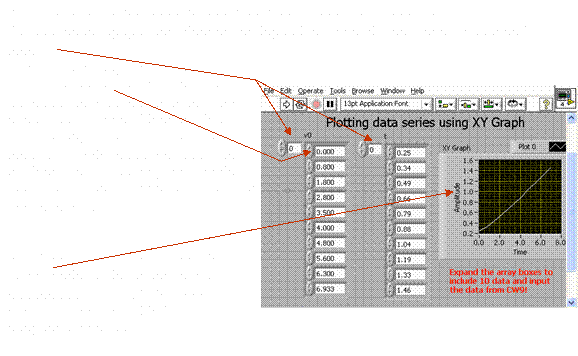

1- What are the inputs required by an XY graph?

2- What is an Array? How do I enter a numeric Array?

3- What should I avoid when entering data into a Numeric Array, for not having strange plot on the XY graph?
