Meeting 17:

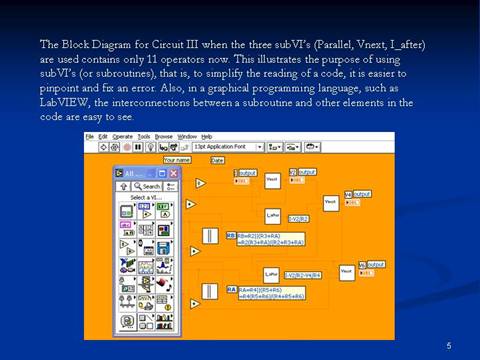

We recreated the VI for analysis
of a circuit with 6 resistors now using the Sub-VI’s created in the last class:
parallel and Vnext.
Logbook
Just to remind that the logbook is a very important
component of the course and will be evaluated, together with the final exam
they count 20% of the course grade.
You should record the logbook on a daily basis, with pages
numbered and dated, about two main topics:
-Discussions
and findings about projects, collectively or individually
-Answers
to questions posted here in the class notes and other learning conclusions you
found by doing activities related to this course.
The next logbook due date is
Logbook questions:

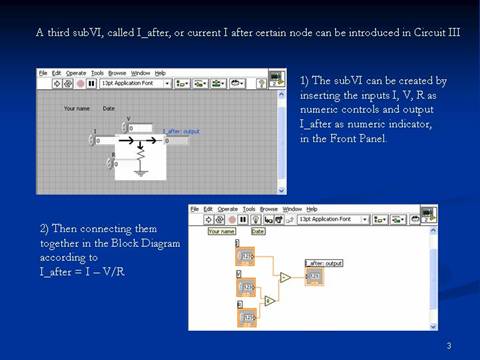

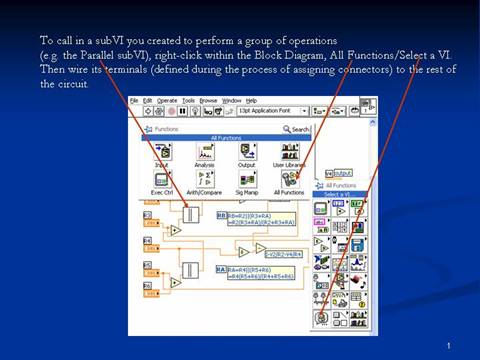

1- Explain the steps to call in a sub-VI.
Show a diagram with the right input in each terminal for your parallel and
Vnext icons.

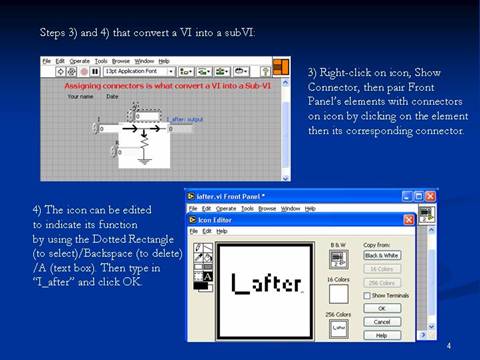

2- What happens if you forgot to assign an connector in the process of creating a sub-VI?
3- What are
the “currents” inputs for V2, V4, and V6?
