Engineering 103 –UMass Boston
This homework is entirely about
LabVIEW. There are three problems
in this set. To receive credits you should submit the LabVIEW files zipped into
a folder named hw4_yourlastname. In each
of these files, (i) your name AND date should be shown as LabVIEW text boxes; (ii) Data entered into the “numeric control”
inputs AND results shown in the “numeric indicator” outputs. (iii) choose ‘Operate/Save current values as default’
before you save your files to be submitted. Print-outs are also required.

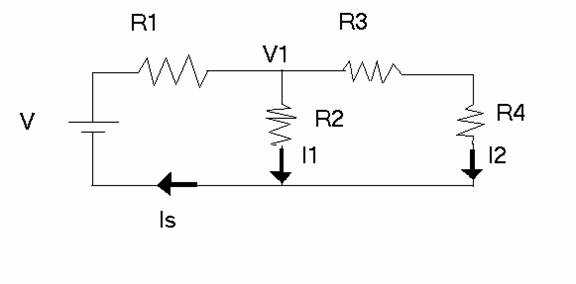

1) You are required to build a VI that outputs Is (A), V1 (V), I1 (A), and I2 (A), as shown in the figure below. The inputs are V (V), and R1 to R4 (Ohm).
You
will turn in a file and a print-out of the front panel and block diagram with
your name inside each (not hand-written), the print-out should show
the outputs for the following inputs: V=12V; R1=3 Ohm; R2=3 Ohm; R3=3 Ohm; R4=3
Ohm,
The equations to use are (they are obtained from Circuit Analysis using series and parallel equivalent combinations of resistors):
a) Rs=R3+R4;
Rt=R2 || Rs=R2*Rs/(R2+Rs);
R=Rt+R1
b) Is=V/R
c) V1=V-R1*Is
I1=V1/R2
I2=V1/Rs

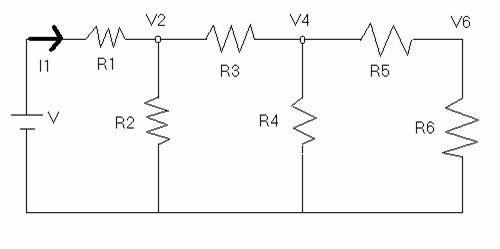

2) You are
required to make a VI that outputs I1 (A), V2 (V), V4 (V), and V6 (V) as shown in
the figure below. The inputs are V (V), and R1 through R6 (Ohm). You will turn
in a file and a print-out of the front panel and block diagram with your
name inside each (not hand-written), the print-out should show the
outputs for the following inputs: V=12V; R1 through R6 = 4 (Ohm) each.
The equations to use are (they are obtained from Circuit
Analysis using series and parallel equivalent combinations of resistors):
(1)
(2)
(3)
(4)
3) (Extra Credits) You are to create two sub VI: one called parallel.vi and one called Vnext.vi (see link Circuit Analysis w/ LabVIEW IV from the course e-syllabus), then save them in a library. In the same library you will rewrite the VI made in problem 2 but now using the newly created sub VI. You can call your subVI from the block diagram by right click, then click on “VI libraries”, then browse your library to find the desired subVI. You will turn in a file and a print-out of the front panel and block diagram with your name inside each (not hand-written), the print-out should show the outputs for the following inputs: V=12V; R1 through R6 = 4 (Ohm) each.
Click here to submit your files.
