Engineering 103 –UMass Boston
CW 6
(In-Class-Work
6)
Introduction to LabVIEW.
a)
Create this VI with one
resistor and one battery:
b)
Create this VI for two resistors in series:
c)
Create this VI for two resistors in parallel:
In each team, students working together at a computer numbered between 1
and 10 will submit LabVIEW LLB file cw5_XX_a.llb,
students working at a computer numbered between 11 and 20 will submit LabVIEW
LLB file cw5_XX_b.llb, to the files folder in the server. Replace XX by 01 if team 1, etc. Include your names within
the files.
Save each VI into a LLB
file (LabVIEW library) as follows:
|
Creating library file
cw5_XX_a.llb and saving part a) in there. |
Saving part b) or c)
into cw5_XX_a.llb |
|

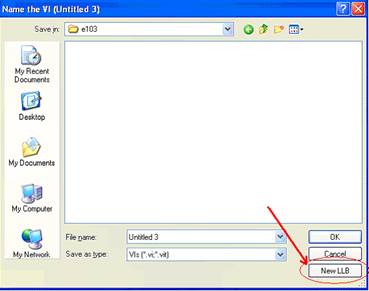

After
select Save, click on New LLB

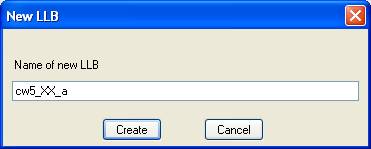

Type
in “cw5_XX_a”, where XX is the two digit team number, and “a” or “b” based on
your subgroup within the team. Then click Create.

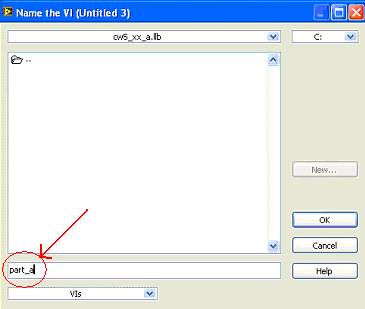

Type in the file name for the VI: in this case “part_a”. Then click OK |

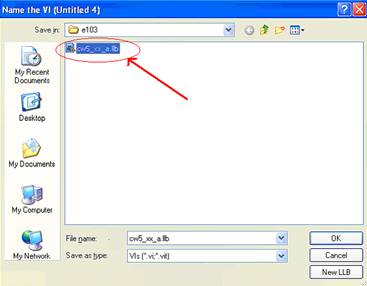

After select Save, double click on the library you created cw5_XX_a.llb

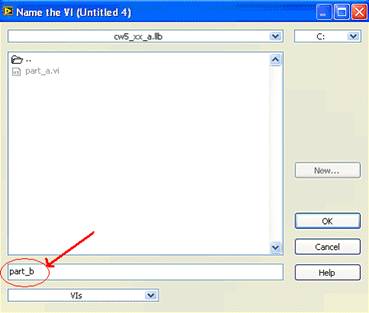

Type in the file name for the VI: in this case “part_b”. Then click OK |
*Remember
that this is an individual work (turn it in, as instructed, with your name and
date). Home-works and class-works count 20% toward the course grade.
Class-works are done in class.
